Adding/Configuring an Avamar Server within the Data Collector Policy Window
Add Avamar servers by clicking Add, by importing using a .CSV file, or by using the Host Management page. The Avamar Servers table is populated using any of these methods. Servers added to this table are also displayed under Host Management and Host Group Administration. The Avamar Servers table only displays available servers. These servers are not assigned to other policies within the domain.
Note: Data Collector policies can be in place for multiple servers, but a server cannot be assigned multiple policies within the same domain. If you try add a server that is already assigned to another Data Collector policy, you will be prompted to remove it from its current policy and reassign it.

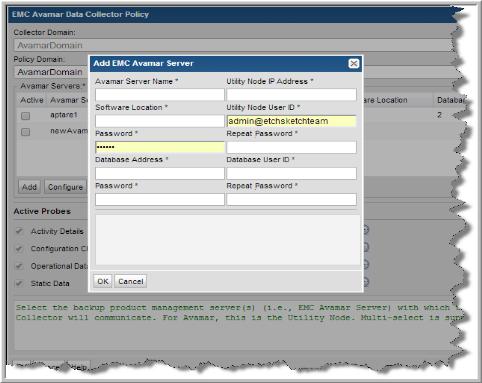

1. Click Add on the EMC Avamar Data Collector Policy screen. The Add EMC Avamar Server screen displays.
2. Enter the values:
Field
Description
Avamar Server Name
The Avamar Utility Node server name. This is displayed on the Host Management page under the Host Name column. This is displayed on the Host Administration dialog under Internal Name. This is a required field.
Utility Node IP Address
IP address of the Avamar Utility Node. This is management server with which the Data Collector will communicate. This is displayed on the Host Management page under the Primary IP column. This is displayed on the Host Administration dialog under IP Address. This is a required field.
Software Location
Directory under which all Avamar binaries and configuration files are kept. This field is pre-populated with a default location: /usr/local/avamar. You can edit the field, but it must contain a value.
Utility Node User ID
Login credentials must have root-level access to the Avamar utility node for the Data Collector to invoke command-line programs in the /usr/local/avamar/bin directory. This is a required field.
Password
Password for the utility node username that has root-level access to the Avamar utility node. This is a required field.
Database Address
Hostname or IP address used to connect to the Avamar Management Console database. This field is pre-populated with a default address: the Utility Node IP address. You can edit the field, but it must contain a value.
Database User ID
User name to log into the EMC Avamar Management Console database for reporting access. This field is pre-populated with a default Avamar user ID: viewuser. You can edit the field, but it must contain a value.
Password
Password for credentials required to log into the EMC Avamar management console database for reporting access. This field is pre-populated with a default Avamar user password: viewuser1. You can edit the field, but it must contain a value.
