Create a CSV File of LUN Objects and Attributes
The loadLunAttributeFile utility assigns attribute values to a list of LUNs. This utility takes as input a comma-separated values (CSV) file.
NOTE: This CSV file becomes the master document of record for LUN Attributes and therefore should be preserved in a working directory for future updates.

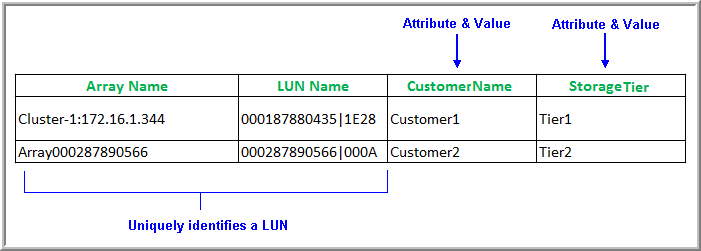

1. Create a spreadsheet table, in the format shown in the following example, and save it as a CSV file in a working directory. This file is specific to loading LUN attributes.
Columns
• The first column lists the Array Name.
• The second column lists the LUN Name.
• Each additional column lists attributes and values that will be applied to the LUN. Multiple attributes can be assigned to a single LUN object.
Rows
• First (Header) Row - Contains the fields that uniquely identify the LUN (array and LUN names), followed by Attribute names. The header row is information only and is not processed as a data row.
• Subsequent rows list the Array name and LUN name, followed by the attribute values that you are assigning to each LUN.
